BTL-H1.1 Series 1.1" Telecentric Lens for AOI & Machine Vision Measurement
BTL-0.708X-73-H1.1(LM)
Ship To Detecting...
Delivery: -
Product Description
BTL-H1.1 Series 1.1" Telecentric Lens for Large Format Machine Vision

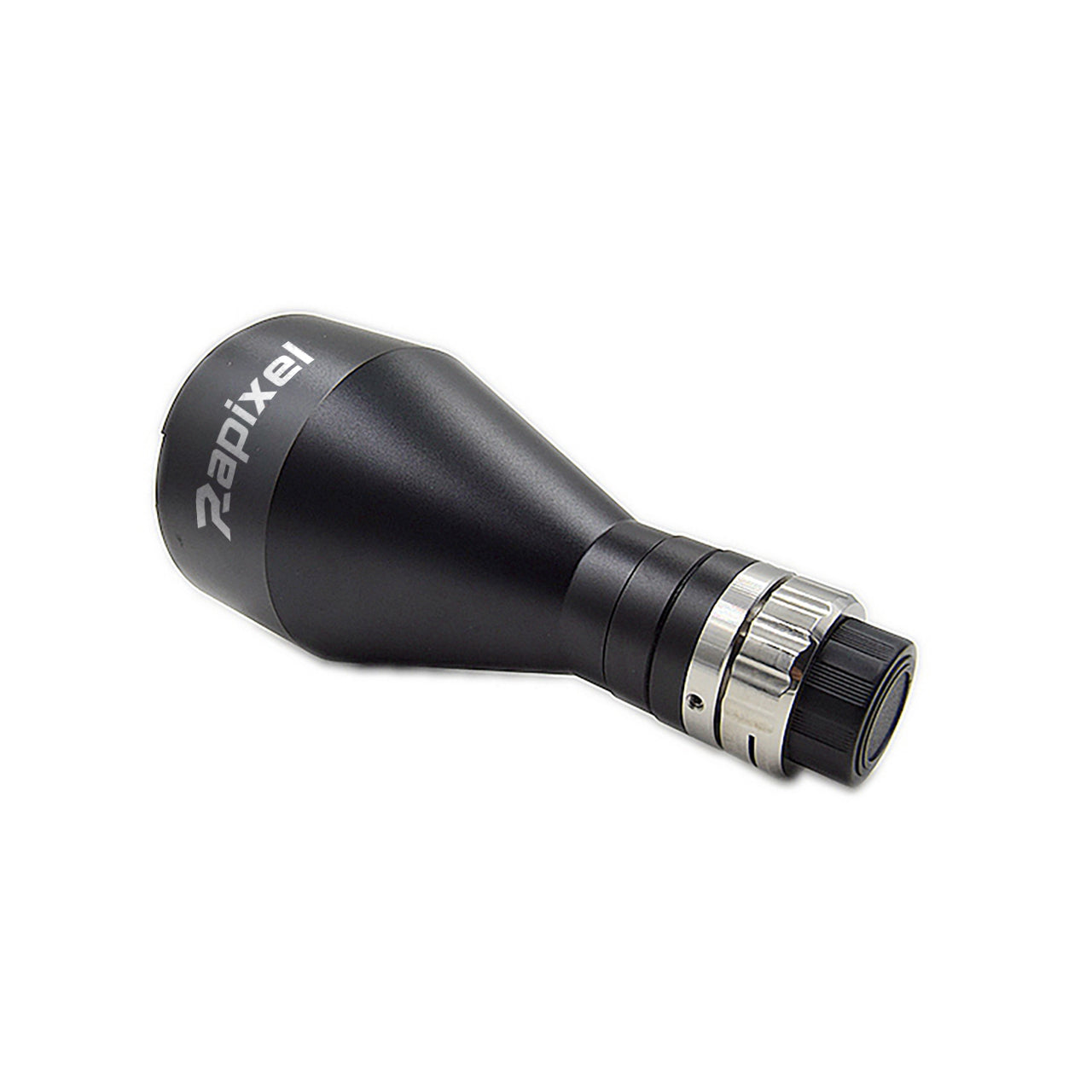

The Rapixel BTL-H1.1 Series Telecentric Lens is designed for high-resolution machine vision systems using 1.1" industrial cameras.
Featuring a large image circle, telecentric optical design, and ultra-low distortion performance, this lens provides accurate measurement, consistent magnification, and reliable imaging for demanding inspection applications.
With magnification options from 0.061X to 0.708X, FOV up to 300mm, and C-Mount compatibility, the BTL-H1.1 Series is ideal for AOI, precision measurement, semiconductor inspection, and large-area industrial vision systems.
Key Features
- 1.1" Sensor Compatible for large-format industrial cameras.
- Telecentric Optical Design for accurate measurement imaging.
- Ultra-Low Distortion for high-precision inspection.
- Large FOV up to 300mm for wide-area imaging.
- C-Mount Integration for flexible system deployment.
Applications
- AOI Inspection
- PCB & Electronics Inspection
- Semiconductor Inspection
- Precision Measurement
- Industrial Automation Vision
Specifications
1.1" C-Mount Telecentric Lens
| Model No. | FOV (Φmm) | Mag. (X) | WD (mm) | MTF30 (lp/mm) |
|---|---|---|---|---|
| BTL-0.708X-73-H1.1(LM) | 26 | 0.708 | 73±1 | >75 |
| BTL-0.511X-110-H1.1(LM) | 36 | 0.511 | 110±2 | >85 |
| BTL-0.438X-118-H1.1(LM) | 42 | 0.438 | 118±3 | >115 |
| BTL-0.383X-128-H1.1(LM) | 48 | 0.383 | 128±3 | >115 |
| BTL-0.383X-138-H1.1(LM) | 48 | 0.383 | 138±3 | >80 |
| BTL-0.329X-138-H1.1(LM) | 56 | 0.329 | 138±3 | >145 |
| BTL-0.288X-158-H1.1(LM) | 64 | 0.288 | 158±3 | >150 |
| BTL-0.256X-178-H1.1(LM) | 72 | 0.256 | 178±3 | >145 |
| BTL-0.23XH-228-H1.1(LM) | 80 | 0.230 | 228±4 | >145 |
| BTL-0.204X-208-H1.1(LM) | 90 | 0.204 | 208±3 | >145 |
| BTL-0.184X-238-H1.1(LM) | 100 | 0.184 | 238±4 | >120 |
| BTL-0.167X-263-H1.1(LM) | 110 | 0.167 | 263±4 | >150 |
| BTL-0.153X-273-H1.1(LM) | 120 | 0.153 | 273±5 | >150 |
| BTL-0.135X-288-H1.1(LM) | 136 | 0.135 | 288±5 | >150 |
| BTL-0.123X-300-H1.1(LM) | 150 | 0.123 | 300±5 | >145 |
| BTL-0.108X-318-H1.1(LM) | 170 | 0.108 | 318±5 | >150 |
| BTL-0.097X-330-H1.1(LM) | 190 | 0.097 | 330±5 | >150 |
| BTL-0.085X-372-H1.1(LM) | 216 | 0.085 | 372±5 | >150 |
| BTL-0.077XH-410-H1.1(LM) | 240 | 0.077 | 410±6 | >150 |
| BTL-0.071X-338-H1.1(LM) | 258 | 0.071 | 338±5 | >150 |
| BTL-0.061X-465-H1.1(LM) | 300 | 0.061 | 465±6 | >145 |
