BTL-23 Series 2/3" Telecentric Lens | C-Mount Lens for AOI & Precision Machine Vision
BTL-0.438X-73-23
Ship To Detecting...
Delivery: -
Product Description

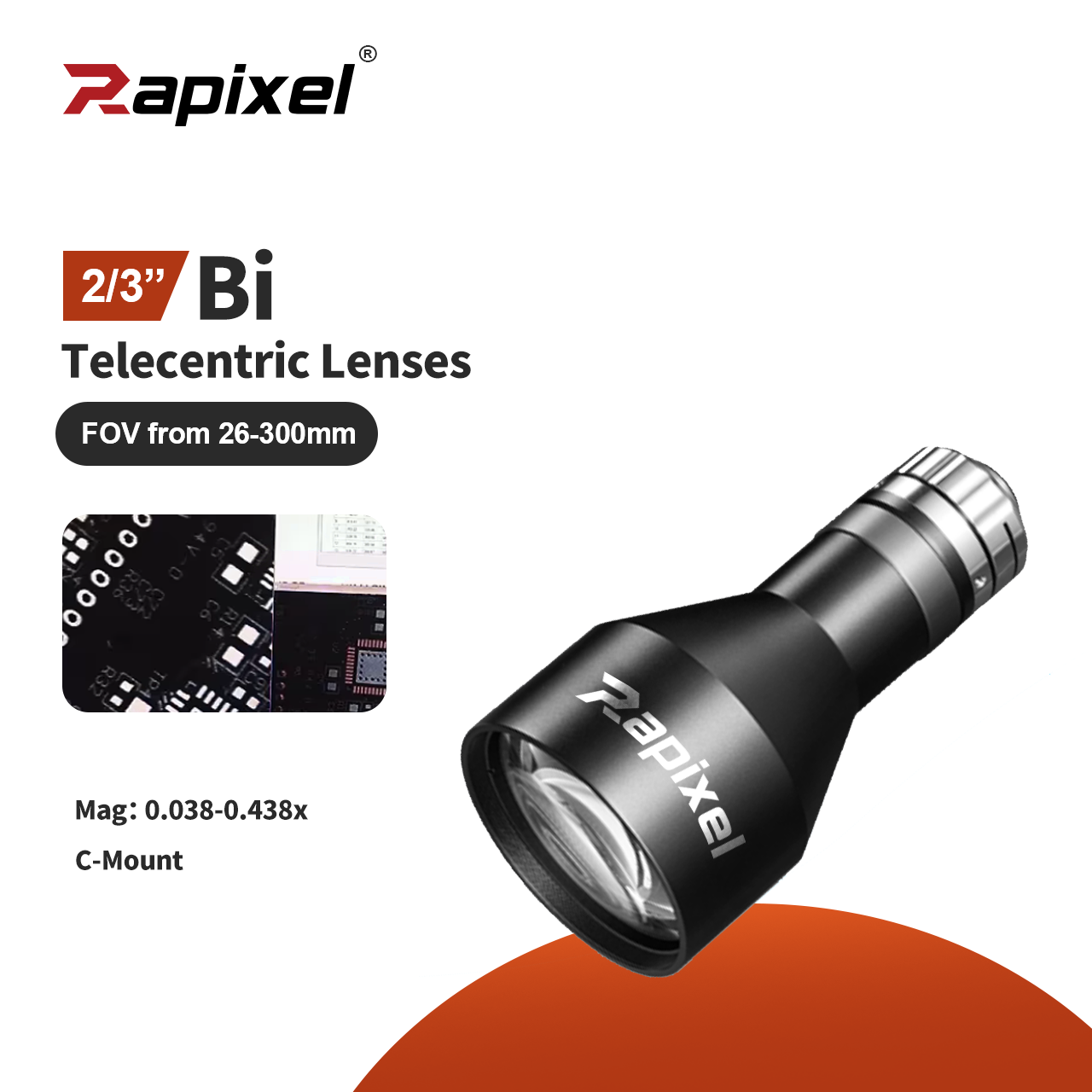

BTL-23 Series 2/3" Telecentric Lens for Precision Machine Vision
The Rapixel BTL-23 Series Telecentric Lens is designed for high-accuracy machine vision inspection, measurement, and automation systems requiring stable magnification and distortion-free imaging.
Compatible with 2/3" industrial cameras and C-Mount interfaces, the series provides excellent optical performance with <0.1% distortion, high resolution, and flexible magnification options from 0.038X to 0.438X.
With FOV options up to 300mm, the BTL-23 Series is ideal for AOI inspection, dimensional measurement, semiconductor inspection, and precision manufacturing applications.
Key Features
- 2/3" Sensor Compatibility supports high-performance industrial vision cameras.
- Telecentric Optical Design provides accurate measurement with minimal perspective error.
- Ultra-Low Distortion <0.1% ensures reliable inspection results.
- Wide Magnification Range from 0.038X to 0.438X for different applications.
- Large FOV up to 300mm enables inspection of larger components.
Applications
- AOI Inspection for PCB, electronics, and precision components.
- Dimensional Measurement for industrial metrology and quality control.
- Semiconductor Inspection for wafer and component analysis.
- Battery Inspection for electrode, cell, and assembly quality checking.
- Robotics Vision for accurate positioning and automated manufacturing.
Specifications
| Model No. | FOV (Φmm) | Mag. (X) | WD (mm) | MTF30 (lp/mm) |
|---|---|---|---|---|
| BTL-0.438X-73-23 | 26 | 0.438 | 73±1 | >130 |
| BTL-0.317X-110-23 | 36 | 0.317 | 110±2 | >145 |
| BTL-0.271X-118-23 | 42 | 0.271 | 118±3 | >185 |
| BTL-0.238X-128-23 | 48 | 0.238 | 128±3 | >165 |
| BTL-0.238X-138-23(LM) | 48 | 0.238 | 138±3 | >130 |
| BTL-0.204X-138-23(LM) | 56 | 0.204 | 138±3 | >180 |
| BTL-0.178X-158-23(LM) | 64 | 0.178 | 158±3 | >180 |
| BTL-0.158X-178-23(LM) | 72 | 0.158 | 178±3 | >180 |
| BTL-0.142XH-228-23(LM) | 80 | 0.142 | 228±4 | >180 |
| BTL-0.127X-208-23(LM) | 90 | 0.127 | 208±3 | >180 |
| BTL-0.114X-238-23(LM) | 100 | 0.114 | 238±4 | >185 |
| BTL-0.104X-263-23(LM) | 110 | 0.104 | 263±4 | >190 |
| BTL-0.095X-273-23(LM) | 120 | 0.095 | 273±5 | >185 |
| BTL-0.084X-288-23(LM) | 136 | 0.084 | 288±5 | >185 |
| BTL-0.076X-300-23(LM) | 150 | 0.076 | 300±5 | >185 |
| BTL-0.067X-318-23(LM) | 170 | 0.067 | 318±5 | >180 |
| BTL-0.06X-330-23(LM) | 190 | 0.060 | 330±5 | >180 |
| BTL-0.053X-372-23(LM) | 216 | 0.053 | 372±5 | >180 |
| BTL-0.048XH-410-23(LM) | 240 | 0.048 | 410±6 | >180 |
| BTL-0.044X-338-23(LM) | 258 | 0.044 | 338±5 | >180 |
| BTL-0.038X-465-23(LM) | 300 | 0.038 | 465±6 | >180 |
Pairs well with
Contact info@rapixeltech.com to get shipping discount for more than 2pcs!
Free SDK Provided
1-Year Warranty
