Product Description

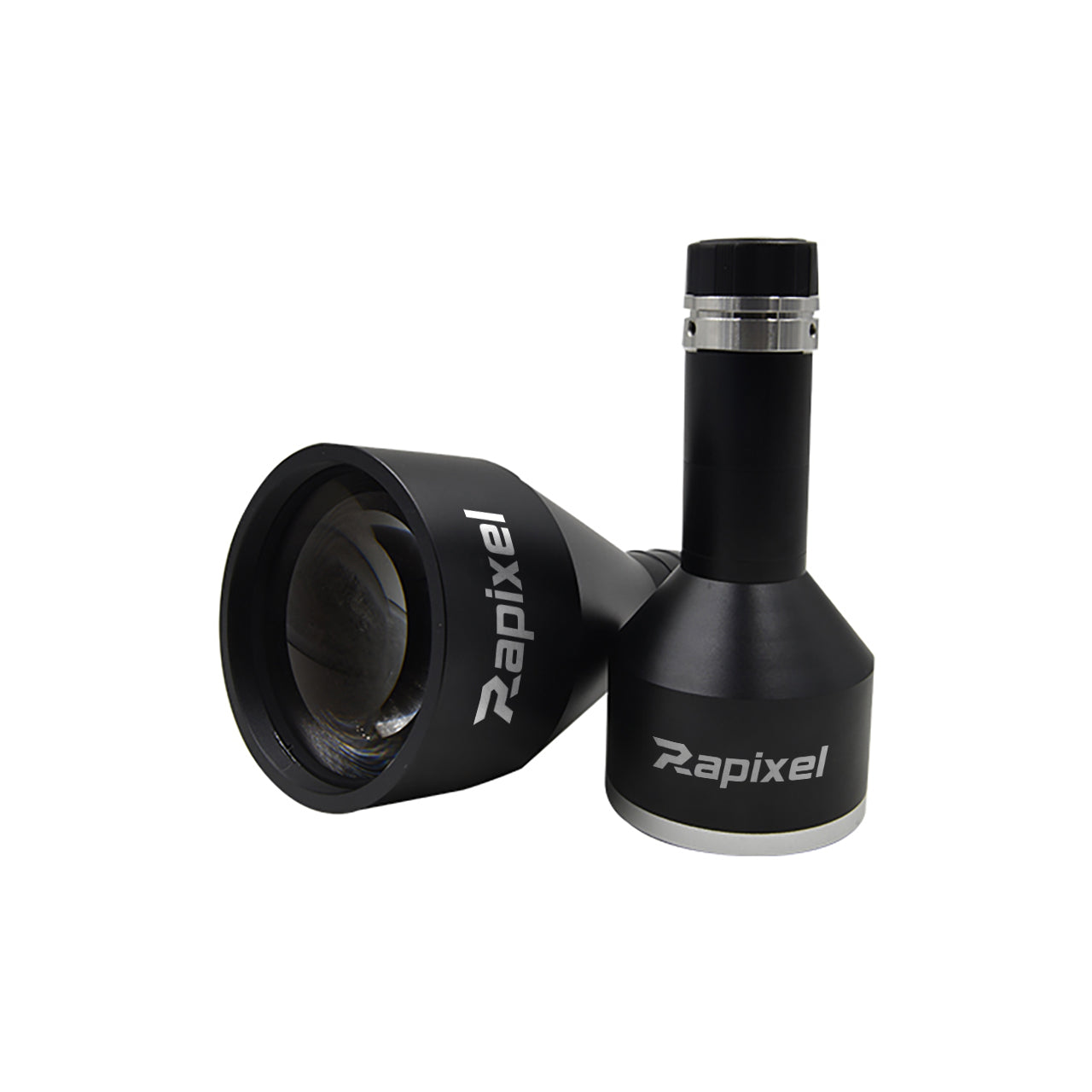

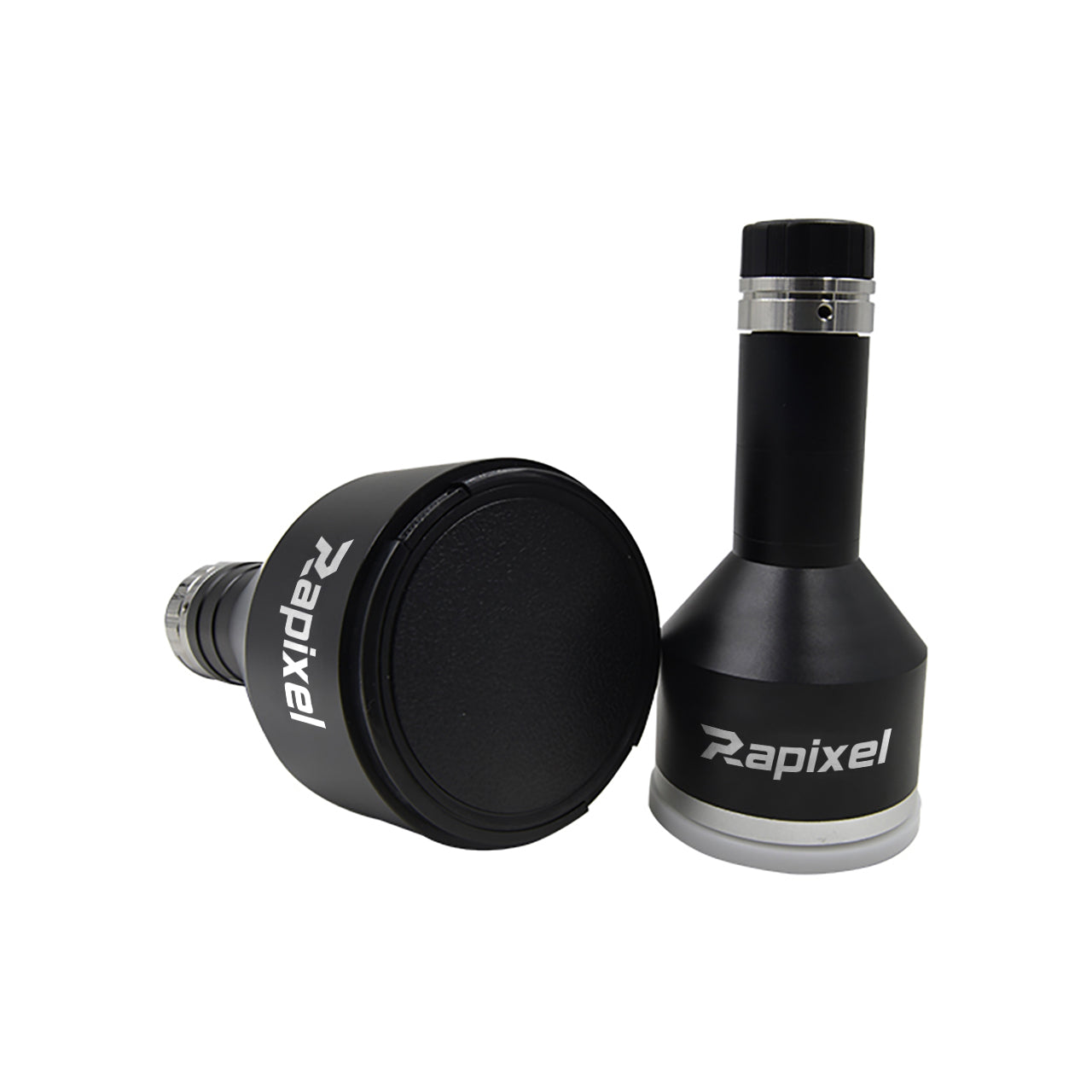

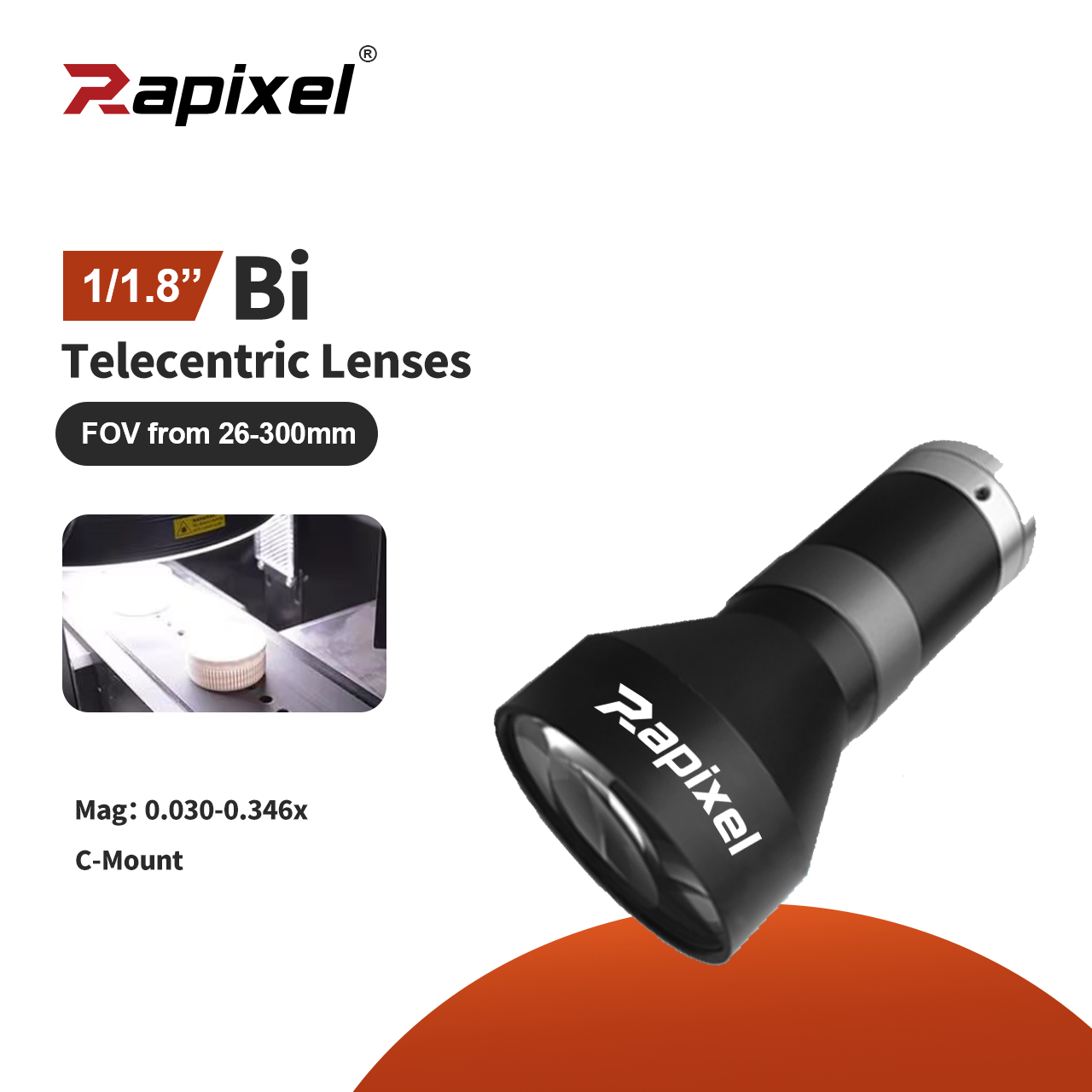

BTL-118 Series 1/1.8" Telecentric Lens for Precision Inspection
The Rapixel BTL-118 Series Telecentric Lens is designed for high-precision machine vision inspection, AOI, and measurement applications requiring accurate imaging and stable magnification.
Compatible with 1/1.8" C-Mount cameras, the series delivers excellent optical performance with <0.1% distortion, high resolution, and multiple magnification options from 0.030X to 0.346X.
With field-of-view options up to 300mm, the BTL-118 Series provides flexible solutions for large-area inspection, dimensional measurement, and automated quality control systems.
Key Features
- 1/1.8" Sensor Compatibility supports industrial C-Mount cameras for flexible integration.
- Telecentric Optical Design ensures stable magnification and accurate measurement.
- Ultra-Low Distortion <0.1% improves inspection reliability and precision.
- Wide FOV Range up to 300mm supports different inspection sizes.
- High Optical Resolution delivers sharp imaging for detailed defect detection.
Applications
- AOI Inspection for PCB, electronics, and precision components.
- Dimensional Measurement for industrial metrology systems.
- Semiconductor Inspection requiring accurate optical measurement.
- Machine Vision Automation for quality control applications.
- OEM Vision Systems for customized inspection equipment.
Specifications
1/1.8" F4.6 C-Mount Telecentric Lens
| Model No. | FOV (Φmm) | Mag. (X) | WD (mm) | MTF30 (lp/mm) |
|---|---|---|---|---|
| BTL-0.346X-73-118 | 26 | 0.346 | 73±1 | >170 |
| BTL-0.25X-110-118 | 36 | 0.250 | 110±2 | >180 |
| BTL-0.214X-118-118 | 42 | 0.214 | 118±3 | >195 |
| BTL-0.188X-128-118 | 48 | 0.188 | 128±3 | >190 |
| BTL-0.161X-138-118 | 56 | 0.161 | 138±3 | >190 |
| BTL-0.141X-158-118 | 64 | 0.141 | 158±3 | >195 |
| BTL-0.125X-178-118 | 72 | 0.125 | 178±3 | >195 |
| BTL-0.113XH-228-118 | 80 | 0.113 | 228±4 | >195 |
| BTL-0.1X-208-118 | 90 | 0.100 | 208±3 | >195 |
| BTL-0.09X-238-118 | 100 | 0.090 | 238±4 | >200 |
| BTL-0.082X-263-118 | 110 | 0.082 | 263±4 | >200 |
| BTL-0.075X-273-118 | 120 | 0.075 | 273±5 | >200 |
| BTL-0.066X-288-118 | 136 | 0.066 | 288±5 | >200 |
| BTL-0.06X-300-118 | 150 | 0.060 | 300±5 | >200 |
| BTL-0.053X-318-118 | 170 | 0.053 | 318±5 | >200 |
| BTL-0.047X-330-118 | 190 | 0.047 | 330±5 | >200 |
| BTL-0.042X-372-118 | 216 | 0.042 | 372±5 | >200 |
| BTL-0.038XH-410-118 | 240 | 0.038 | 410±6 | >200 |
| BTL-0.035X-338-118 | 258 | 0.035 | 338±5 | >200 |
| BTL-0.03XH-465-118 | 300 | 0.030 | 465±6 | >190 |
Pairs well with
Contact info@rapixeltech.com to get shipping discount for more than 2pcs!
Free SDK Provided
1-Year Warranty
BTL-118 Series 1/1.8" Telecentric Lens | C-Mount Lens for Precision Inspection
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Specifications
Sensor size
1/1.8"
Wd
73mm-465mm
Mount
Mount2
C-mount
Magnification
＞0.02-0.1x
＞0.1-1x
