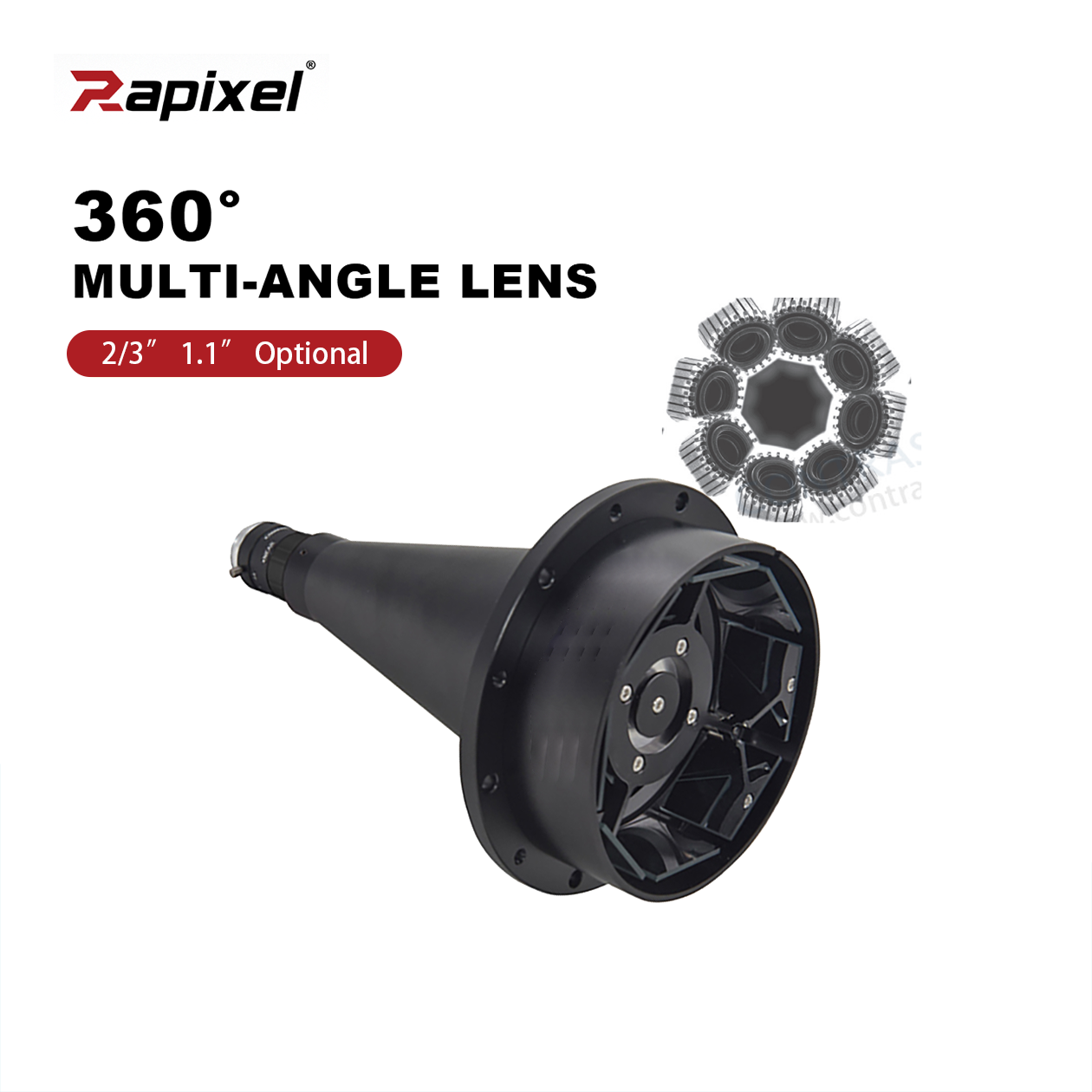

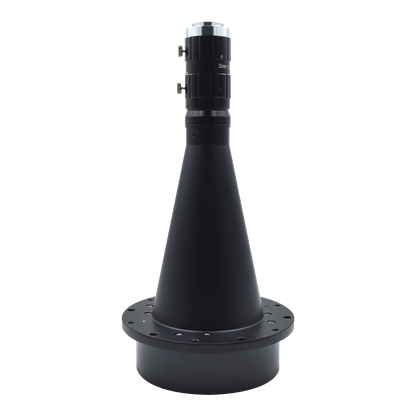

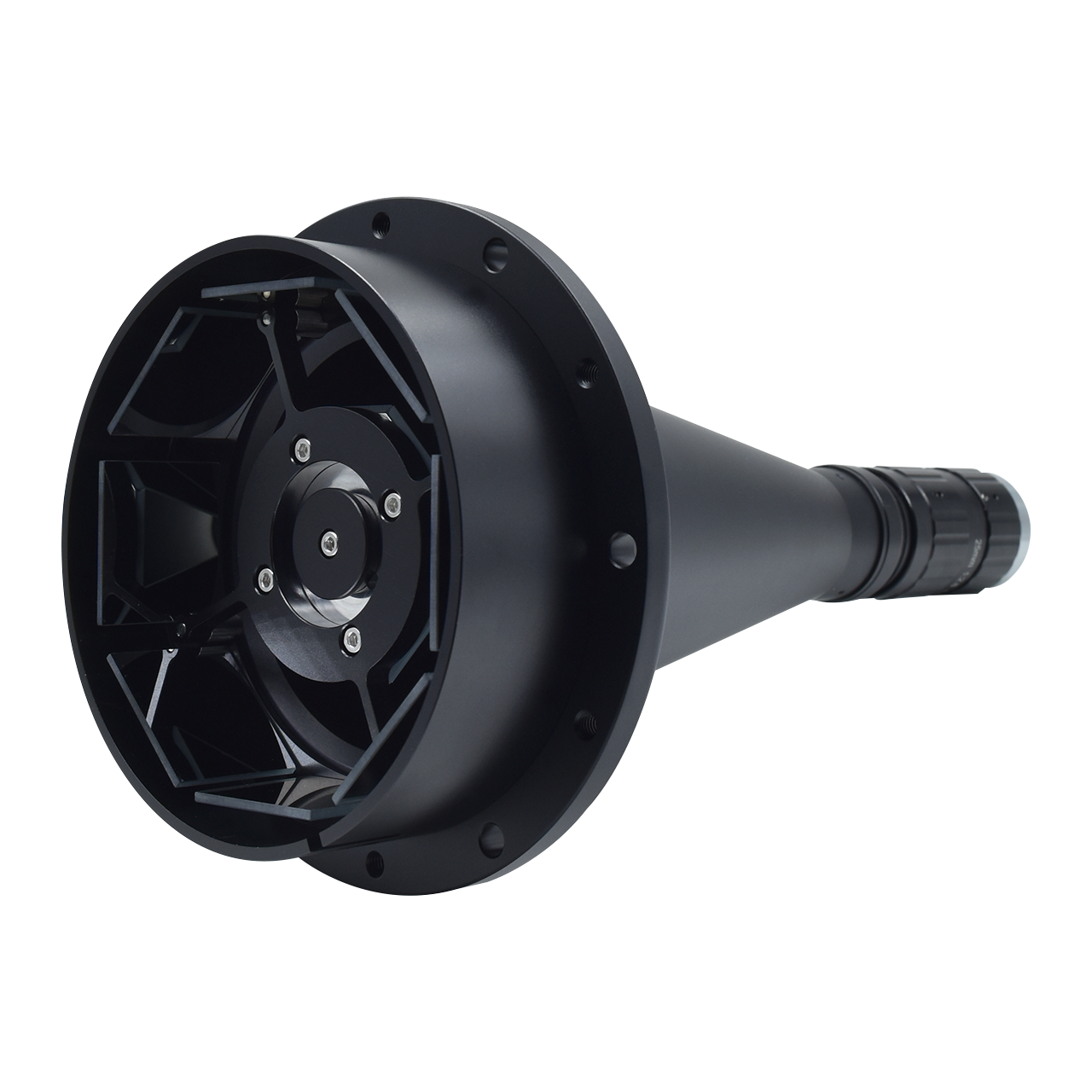

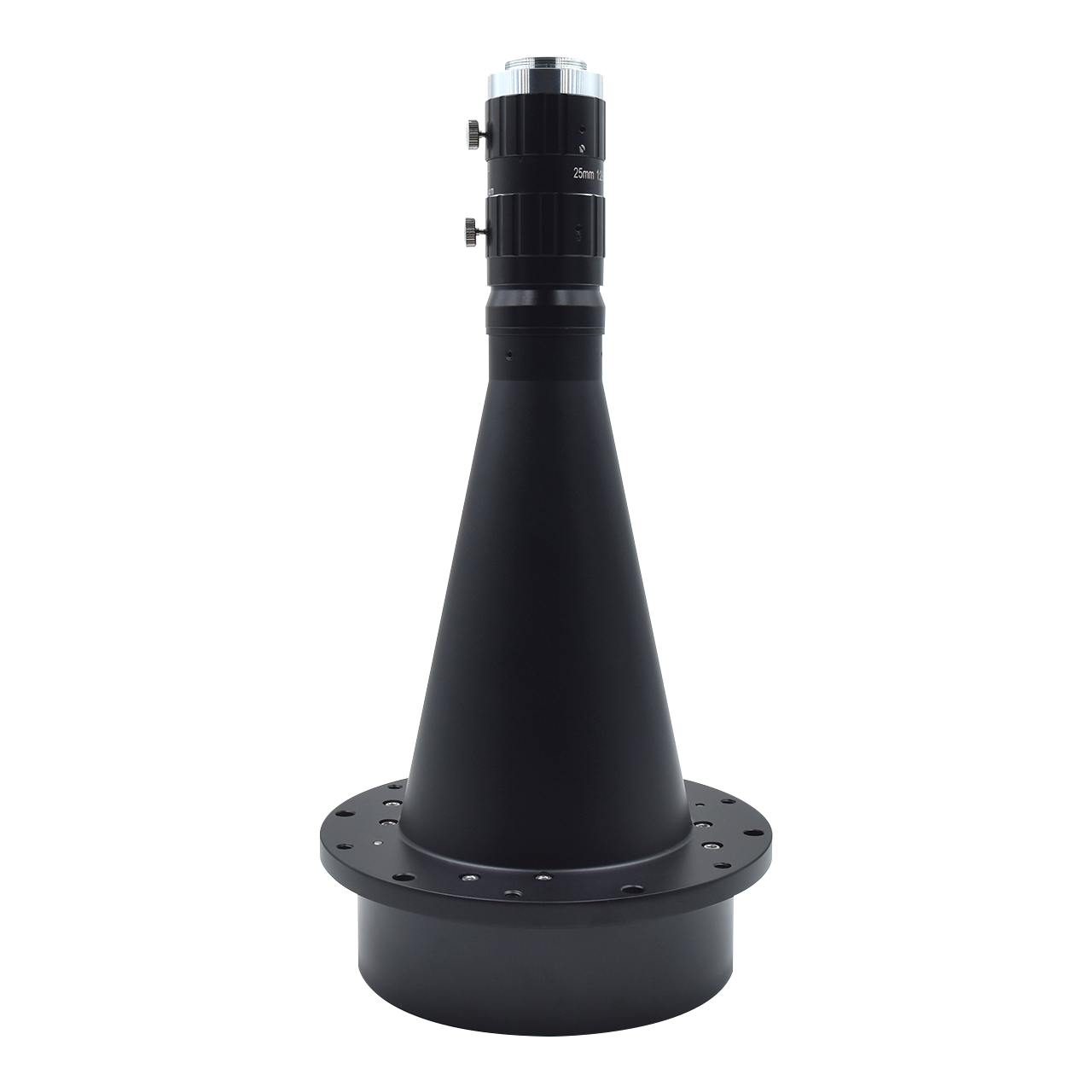

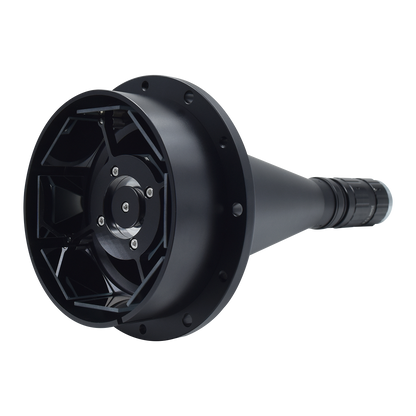

360° Multi-Angle Lenses Ultra-High Resolution Can Detect Small Defects
Experience unparalleled precision with our 360° multi-angle lenses, designed to capture every detail with ultra-high resolution. Perfect for detecting even the smallest defects, these lenses ensure flawless inspection and quality control. Elevate your visual accuracy and never miss a critical flaw again.
| Model | VT-360LEN-0825-118 | VT-360LEN -0825-230 |
VT-360LEN-0850-230 | VT-360LEN0825-H1.1 | VT-360LEN0816-H1.1 | |
| Max Support CCD Size (Фmm) | 2/3" (Optimal) | 2/3" | 2/3" | 1.1" (Optimal) | 1.1" (Optimal) | |
| Optical Specifications |
Wavelength Range | 400~680 nm | 450~650 nm | 400~680 nm | 400~680 nm | 400~680 nm |
| Working Distance | 3~40 mm | 20~40 mm | 23~85 mm | 3~40 mm | 5~100 mm | |
| MTF30 | 150 lp/mm | 150 lp/mm | / | 126 lp/mm | 120 lp/mm | |
| Best Aperture (F/#) | 2.8~16 | 8~16 | 2.8~16 | 2.8~25 | 2.8~25 | |
| Mechanical Specifications | Max Diameter | 140 mm | 140 mm | 140 mm | 140 mm | 140 mm |
| Length | 230.9 mm | 229.3 mm | 238.4 mm | 229.3 mm | 299.5 mm | |
| Mount | C | C | C | C | C | |
| Max Object Diam. Detected From Side |
Object Height 20mm | 30mm | 30mm | 65mm | 30mm | 5 10 25 45 60 75 |
| Object Height 5mm | 60mm | 50mm | / | 72mm | 85 72 40 10 15 5 | |
| Max Object Diam. Detected From Side + Top | Object Height 10mm | 30mm | 30mm | / | 30mm | / |
Pairs well with
In stock! Ships within 5 business days.
Free SDK Provided
1-Year Warranty
360° Multi-Angle Lenses Ultra-High Resolution Can Detect Small Defects
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Specifications
Mount
Purchase Note
🧾Notice for U.S. Customers
Due to applicable tariffs, please email your company name and FedEx, UPS, or DHL account number to info@rapixeltech.com after placing your order. (U.S. customers only)
💳 Transaction Fees Are Non-Refundable
When a refund is issued, please note that payment processing platforms do not return their service fees. These fees are not charged by our store, but by third-party providers (Shopify & PayPal). The handling fee will be deducted from a certain percentage of the order amount.(Depending on ways you paid: 2.5%-6%)
✅ Order Production Policy
All of our products are made to order or prepared specifically based on your purchase. We kindly ask customers to confirm their needs before placing an order. If you need assistance or further clarification before ordering, feel free to contact info@rapixeltech.com
Product FAQ
1. Lenses Not Included by Default
Industrial cameras are sold without lenses, as lens selection depends on your specific needs, such as field of view, working distance, resolution, and lighting.This differs from consumer cameras, which often have built-in lenses. We're happy to help you choose the right lens for your application.(info@rapixeltech.com)
2. No Internal Video Recording
Industrial cameras don't record video internally. They capture frames and transmit them in real time via USB, GigE, or Camera Link to a PC. Video recording must be handled by external software. If you simply need basic video recording, a consumer camera may be more suitable.
