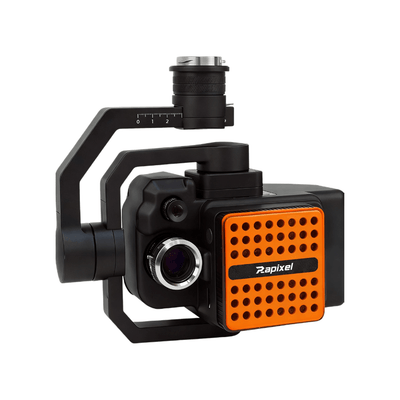

iRx10U19L 400–1000 nm hyperspectral imaging camera
iRx10UVN36KM VNIR UAV Hyperspectral Camera | 400–1000nm, 1200 Bands - Rapixel Offical Store

Rapixel iRx25VU06L UAV Hyperspectral Camera | 400–2500 nm

$224,250.00

iRx25VU06L

Spectral Range
Spectral Range: 400-2500nm
Specifications
Specifications: VISNIR 1920p SWIR 640p
Bundle
Bundle: +25mm Lens[Defult]
Hurry, only 10 items left in stock!
Delivery Truck

Ship To Detecting...

Delivery: -

Product Description

The Rapixel iRx25VU06L UAV Hyperspectral Camera combines VIS-NIR and SWIR imaging to capture spectral data across a broad 400–2500 nm range. With at least 1,450 combined spectral channels and spectral resolution of ≤2.5 nm in VIS-NIR and ≤10 nm in SWIR, it supports detailed spectral analysis for airborne remote sensing and scientific research.

Featuring transmission gratings, an embedded processor, 8 GB RAM, and a 512 GB SSD, the system is designed for efficient onboard data acquisition and storage. Its compact design, USB 3.0 interface, and integrated cooling make it suitable for UAV-based mineral exploration, environmental monitoring, soil analysis, and precision agriculture.

Main Features

  • 400–2500 nm spectral coverage with integrated VIS-NIR and SWIR cameras
  • ≥1,450 combined spectral channels for detailed spectral analysis
  • High spectral resolution: ≤2.5 nm VIS-NIR and ≤10 nm SWIR
  • High-speed imaging: 128 fps VIS-NIR and 200 fps SWIR
  • Embedded processing with 8 GB RAM and 512 GB SSD
  • USB 3.0 interface for data communication
  • Compact airborne design for UAV hyperspectral imaging
  • Reflectance calibration support with batch and regional calibration

Applications

  • UAV-based hyperspectral remote sensing
  • Mineral exploration and geological mapping
  • Precision agriculture and crop health assessment
  • Soil composition and condition analysis
  • Environmental monitoring and ecological research
  • Vegetation classification and forestry surveys
  • Water quality and surface material analysis

Specifications

Feature Specification
Model iRx25VU06L
Camera Type UAV Hyperspectral Camera
Dispersive Element Transmission Grating
Spectral Range
VISNIR(400-1000nm) SWIR(900-2500nm)
Combined Spectral Range 400–2500 nm
Spectral Channels VIS-NIR≥1200  SWIR≥250
Combined Spectral Channels ≥1450
Spatial Pixels VIS-NIR≥1920  SWIR≥640
Combined Spatial Pixels ≥640
Spectral Sampling Interval VIS-NIR≤0.6 nm  SWIR≤6.5 nm
FWHM VIS-NIR≤2.5 nm  SWIR≤10 nm
Sensor VIS-NIR(CMOS)  SWIR(MCT)
Frame Rate VIS-NIR 128 fps  SWIR 200 fps
Lens Focal Length 25 mm
Combined Field of View 21.7° at 25 mm
Combined IFOV 0.59 mrad at 25 mm
Cooling Internal air cooling (VIS-NIR); Stirling cooling (SWIR)
Bit Depth ≥12 bits (VIS-NIR); ≥14 bits (SWIR)
Power Consumption ≤72 W
Operating Temperature 0–40°C
Interface USB 3.0
Embedded Processor Built-in processor with 8 GB RAM
Storage 512 GB SSD
Calibration Batch reflectance and regional calibration support

Pairs well with

Contact info@rapixeltech.com to get shipping discount for more than 2pcs!

Free SDK Provided

1-Year Warranty
FAQ

Q1: What is the spectral range of the iRx25VU06L?
A: It covers a combined spectral range of 400–2500 nm through VIS-NIR and SWIR cameras.

Q2: How many spectral channels does it provide?
A: The system provides at least 1,450 combined spectral channels, including ≥1,200 VIS-NIR and ≥250 SWIR channels.

Q3: What is the spectral resolution?
A: The FWHM is ≤2.5 nm for VIS-NIR and ≤10 nm for SWIR.

Q4: What is the frame rate?
A: The VIS-NIR camera supports 128 fps, while the SWIR camera supports 200 fps.

Q5: Does the camera support onboard data processing and storage?
A: Yes. It includes an embedded processor, 8 GB RAM, and a 512 GB SSD.

Q6: What are its main applications?
A: Typical applications include UAV remote sensing, mineral exploration, precision agriculture, soil analysis, environmental monitoring, and forestry research.
