iCap-MG13-BS Split-Type 1.3MP Monochrome GigE PoE Industrial Camera
Ship To Detecting...
Delivery: -

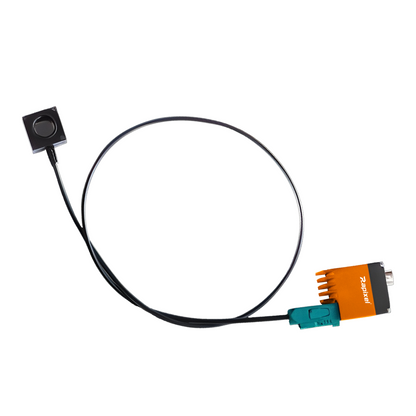

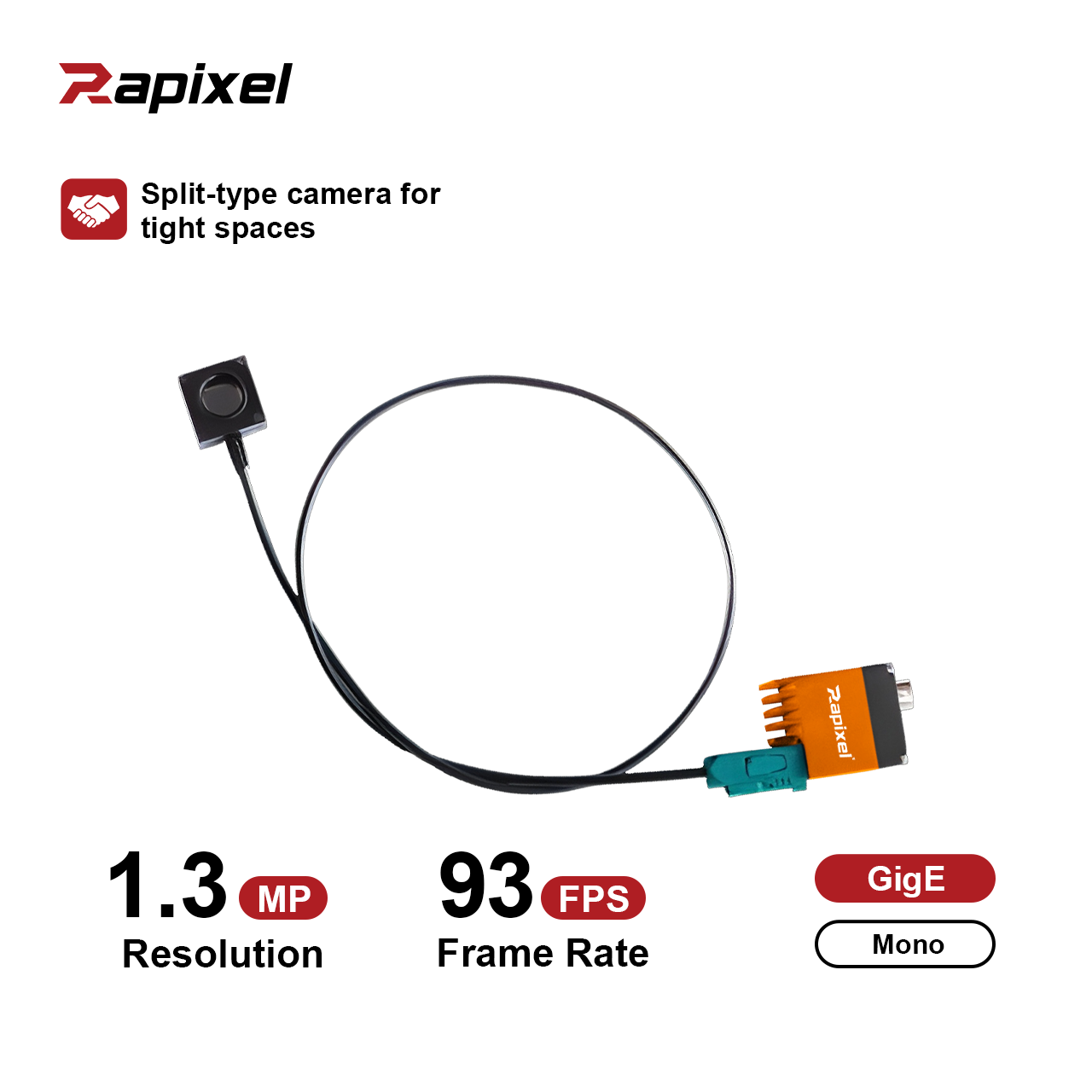

Rapixel iCap-MG13-BS is a split-type industrial camera featuring a 1.3-megapixel monochrome sensor and Gigabit Ethernet (GigE) interface that complies with IEEE 802.3 1000Base-T for data transmission speeds up to 1 Gbps.
It supports Power over Ethernet (PoE) per IEEE 802.3at, simplifying installation with both power and data over a single cable.
The camera integrates a large-capacity frame buffer with packet retransmission technology, ensuring reliable and real-time image transfer even under unstable network conditions.
With built-in ISP functions (gamma, contrast, LUT), the MG13-BS reduces CPU load and enhances processing efficiency. It is fully compatible with GigEVision 1.2 and GenICam standards, supporting popular third-party vision software such as HALCON and MVS.
Key Features:
- Split-type compact design for flexible installation
- 1.3MP monochrome sensor for high-clarity imaging
- GigE interface (1Gbps) compliant with IEEE 802.3 1000Base-T
- Supports PoE power supply (IEEE 802.3at)
- Built-in frame buffer & packet retransmission for reliable data transfer
- Integrated ISP with gamma, contrast, LUT adjustment
- Supports DHCP, LLA, and auto network card following modes
- Plug-and-play with adaptive jumbo frame adjustment
- Compatible with HALCON, MVS, and other vision SDKs
Applications:
Machine vision inspection, industrial automation, robotics, and high-speed image acquisition systems.
| Model | iCap-MG13-BS |
|---|
| Resolution | 1280 x 1024 |
| Sensor | CMOS |
| Sensor Size | 1/1.22" |
| Frame Rate | 93fps |
| Pixel Size | 8μm |
| Shutter Type | Global Shutter |
| Mount | M12 |
| Image Color | Mono |
| Exposure Time | 10us - 10s |
Pairs well with
In stock! Ships within 5 business days.
Free SDK Provided
1-Year Warranty
iCap-MG13-BS Split-Type 1.3MP Monochrome GigE PoE Industrial Camera
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Specifications
Resolution
Frame rate
Sensor
CMOS
Sensor size
1/1.22"
Pixel size
Interface
GigE
Shutter type
Mount
Supply voltage
Operating system
Windows
LinuX
Operating temperature
Purchase Note
🧾Notice for U.S. Customers
Due to applicable tariffs, please email your company name and FedEx, UPS, or DHL account number to info@rapixeltech.com after placing your order. (U.S. customers only)
💳 Transaction Fees Are Non-Refundable
When a refund is issued, please note that payment processing platforms do not return their service fees. These fees are not charged by our store, but by third-party providers (Shopify & PayPal). The handling fee will be deducted from a certain percentage of the order amount.(Depending on ways you paid: 2.5%-6%)
✅ Order Production Policy
All of our products are made to order or prepared specifically based on your purchase. We kindly ask customers to confirm their needs before placing an order. If you need assistance or further clarification before ordering, feel free to contact info@rapixeltech.com
Product FAQ
1. Lenses Not Included by Default
Industrial cameras are sold without lenses, as lens selection depends on your specific needs, such as field of view, working distance, resolution, and lighting.This differs from consumer cameras, which often have built-in lenses. We're happy to help you choose the right lens for your application.(info@rapixeltech.com)
2. No Internal Video Recording
Industrial cameras don't record video internally. They capture frames and transmit them in real time via USB, GigE, or Camera Link to a PC. Video recording must be handled by external software. If you simply need basic video recording, a consumer camera may be more suitable.
